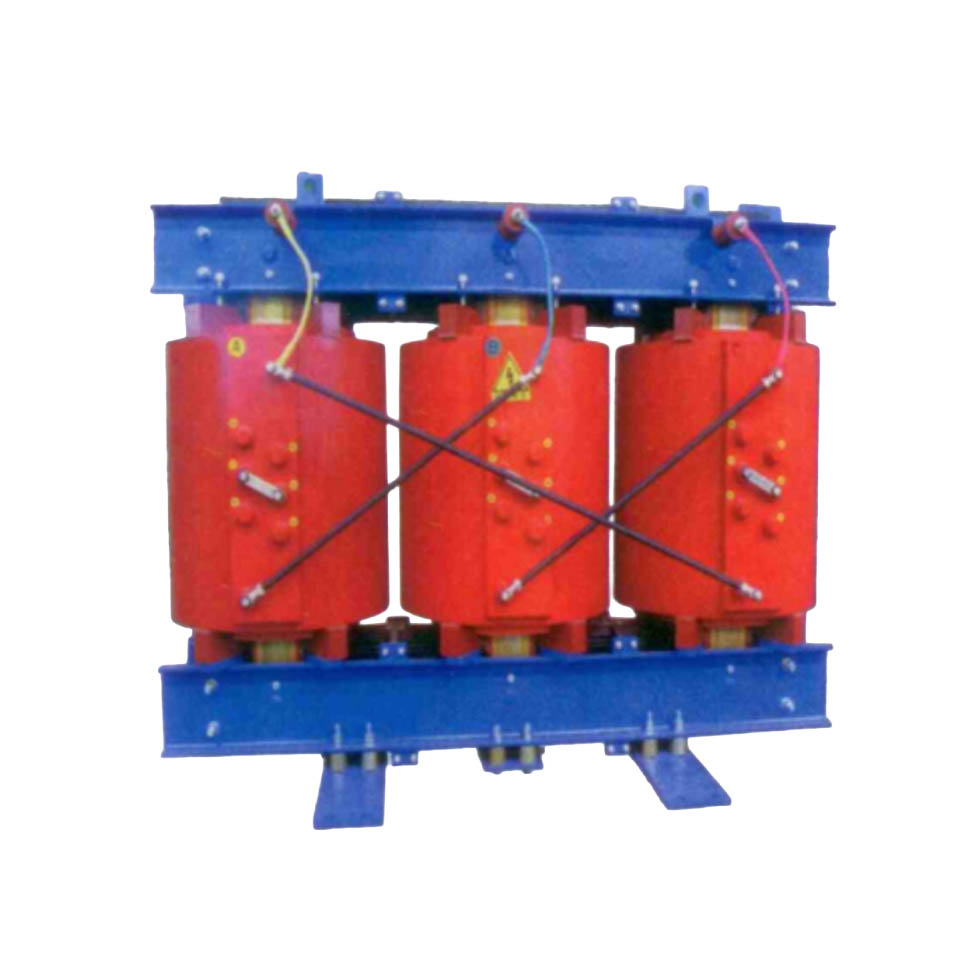

10kV Dry Power Transformer
Standard
Certified to ANSI, IEEE standards, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018. IEC 60076, GB1094
Warranty
3 years warranty for reliable operation.
Lead Time
Starting at 4 months, with expedited options available.
Quotation
Receive a formal quote within 3 business days.
TESTING
Electrical Routine Tests, Winding Resistance Test, Transformer Turns Ratio (TTR) Test, Vector Group & Phase Displacement Test, No-Load Loss & Excitation Current Test, Load Loss & Short-Circuit Impedance Test, Applied Voltage Withstand Test, Induced Overvoltage Test, Partial Discharge (PD) Test, Type Tests, Special / Advanced Tests, Lightning Impulse Testing, Factory Acceptance Test (FAT), Site & Commissioning Tests
PRODUCT FEATURES
- 35 kV Medium-Voltage Power Distribution
- 12,500 kVA High Power Capacity
- Epoxy Resin Cast Dry-Type Technology
- High Fire Safety & Environmental Protection
- High Efficiency & Low Loss Design
- Low Noise Operation
- Excellent Moisture Resistance
- Strong Short-Circuit Withstand Capability
- Advanced Cooling System. Typically equipped with AN (Air Natural), AF (Air Forced)
- Compact & Lightweight Design
- Maintenance-Free Operation
- Advanced Temperature Monitoring
