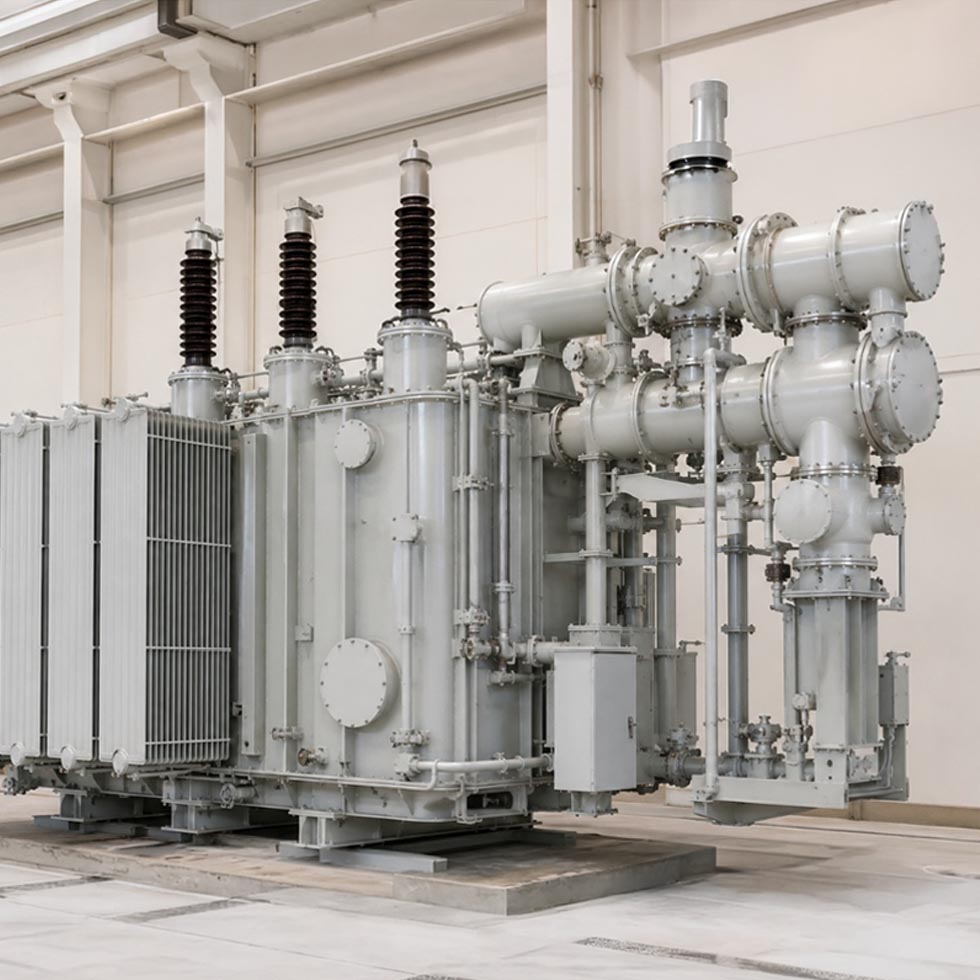

150kV, 22kV, 10kV, 60MVA Power Transformer
Standard
Certified to IEC 60076, UL, DOE, NEMA, CSA, ANSI, IEEE standards, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018. IEC 62271-203 — Gas-Insulated Switchgear (GIS)
Warranty
24 months after commissioning
Lead Time
12 months
TESTING
IEC routine tests :
- Winding resistance measurement
- Transformer turns ratio (TTR) test
- Vector group and polarity verification
- No-load loss and excitation current test
- Load loss and short-circuit impedance test
- Insulation resistance (Megger) test
- Applied AC withstand voltage test
- Induced overvoltage test
- Partial discharge measurement
- Tap changer operational test (OLTC test),
Type Tests, Special / Advanced Tests, Lightning Impulse Testing, Factory Acceptance Test (FAT), Site & Commissioning Tests
Product Features
– Designed specifically for connection with Gas Insulated Switchgear (GIS) systems using high-voltage SF6 gas-insulated bushings
– Engineered for 150 kV transmission networks, providing stable and efficient power transfer from transmission systems to medium-voltage distribution networks.
- Advanced Oil-Immersed Cooling System. Typically equipped with ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced)
- High Efficiency & Low Loss Design
- Robust Short-Circuit Withstand Strength
- Advanced Insulation SystemOn-Load Tap Changer (OLTC)
- Comprehensive Protection & Monitoring
- Compact & Space-Saving Solution
